LED Matrix Generator

Generate graphics for LED matrices. To avoid misunderstandings, a combination of LED states (turned on/off) is called a graphic. My first try at creating programs with WPF.

Download .exe

Features

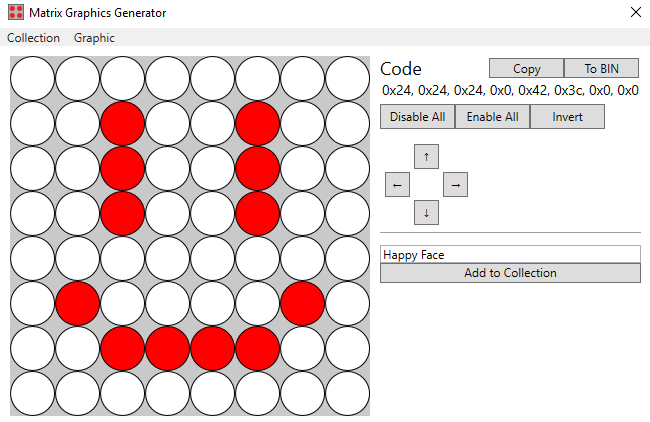

• Generates HEX/BIN codes
• Clear, enable all, invert and shift LEDs
• Resize matrix (Probably works only up to 32 leds per row)
• Collections

How do collections work?

1. Create a collection (Collection -> New)
2. Draw your graphic
3. Name the graphic (Default: New Graphic)
4. Click Add to Collection
5. Repeat steps 2 - 4

• If you'd like to edit/delete a graphic from a collection, open (if one isn't already open) a collection (Collection -> Open) and edit it (Collection -> Edit). You will see a list of all the graphics in the collection.
• Collections can contain graphics of different sizes (e.g. 8x8 and 16x8)
• A collection can be exported to Arduino/C compatible code (Collection -> Export). This will create a .c file that you can include in your sketch. Note that whitespace from names will be removed.
• Collections are stored as .json files.
• It's not recommended to move the collection file (.json) while the collection is open in the program.

Dependencies

• Newtonsoft's Json.NET
